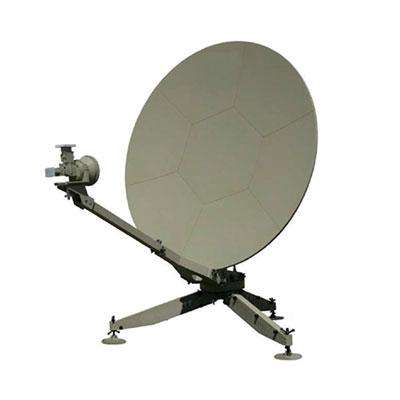

TracStar X120V  1.2 米 x 波段天线


1.2 米x 波段天线

穿透或非穿透安装
拉伸成型铝反射板;
结构可靠, 防锈良好;
出厂前组装和测试系统;
配件立柱热浸镀锌结构钢
接受客户定制。

1.2m  X band antenna

Penetrating or Non-penetrating Mount
Self-aligning, Stretch-formed aluminum reflector panel;
Reliable structure and well in anti-rust;
Assembled and tested feed system before leaving factory;
Hot-dip Galvanized structural steel
Responsive customer service support.





技术规格

SPECIFICATIONS

1.2MX-band Antenna System

Electrical Performance

Antenna Size

1.2M

1.8M

Frequency(GHz)

Rx: 7.25 -7.75GHz

Tx: 7.90 C 8.40GHz

Rx: 7.25 -7.75GHz

Tx: 7.90 C 8.40GHz

Antenna Gain at Midband, dBi



Rx 37.4dBi

Tx 38.1dBi



Rx 40.9dBi

Tx 41.6dBi

VSWR

1.25:1

1.25:1

Axial Ratio

1.0dB

1.0dB

Antenna Noise Temperature

10deg Elevation

20deg Elevation

30deg Elevation



50K

45K

42K



43K

38K

35K

Port to Port Isolation

20dB

20dB

Mechanical Specification

Antenna Type

Offset / Ring focus

Surface Accuracy(RMS)

Less than 0.35

Mount Type

Elevation over Azimuth

Antenna travel range

Azimuth

Elevation



0deg -360deg

5deg -90deg

Environmental Specification

Wind loading

Operational

Survival



80km/h

200km/h

Temperature

-40Deg.c to 60Deg.c

Rain

13mm per hour

Solar Radiation

360BTU/h/ft2
